Home > Online Product Documentation > Table of Contents > Using the URL Builder Using the URL BuilderThe URL Builder utility lets you connect to a relational database server, select a table or view, and render that object as an XML document. You can use this feature, implemented on the URL Builder tab of the Open dialog box, to open a new XML document anywhere in Stylus Studio - in the XML Editor, the XQuery and XSLT Mappers, and so on.
In this sectionThis section covers the following topics: Compared to DB-to-XML Data SourcesUsing the URL Builder is similar to using DB-to-XML data sources, though the URL Builder does have a few characteristics that distinguish it from DB-to-XML data sources.
When to UseUse the URL Builder any time you want to quickly render an entire table or view as XML. Any time you need more control - writing your own SQL/XML or updating the relational database, for example - use a DB-to-XML data source. See Overview of DB-to-XML Data Sources for more information. Connection SettingsConnection settings for the URL Builder are the same as those used to define a DB-to-XML data source: See Specifying Connection Settings for more information. How to Open a Table or View as an XML DocumentTo open a table or view as an XML document:
1. Display the
Open dialog box.
2. Click the Relational DB icon.
Two new tabs appear: Browse and URL Builder.

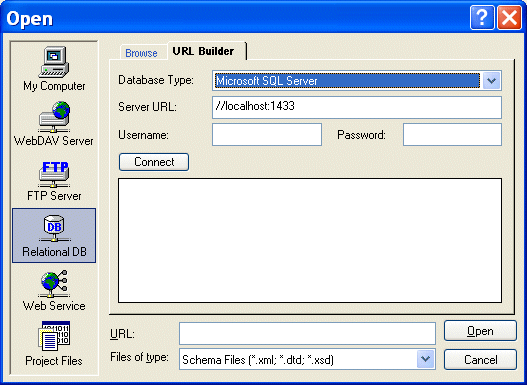

3. Click the
URL Builder tab.
4. Complete the connection settings as described in
Specifying Connection Settings.
5. Click the
Connect button.
The databases for the server you connected to appear in the URL Builder tab. For example:

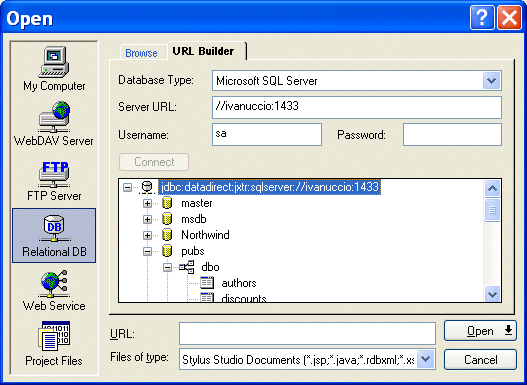

6. Expand the tree diagram to locate the table or view you want to open as an XML document. For example:
7. Click the
Open button.
Stylus Studio opens the table or view as an XML document in the editor you were using when you displayed the
Open dialog box. in this example, the
Notice that the document name contains the connection settings used to define the URL in step 4. |
