The previous procedure, Creating a ddtek:wscall Function, provided an example Web service (Swanand Mokashi's StockQuote WSDL (http://www.swanandmokashi.com/HomePage/WebServices/StockQuotes.asmx?WSDL), and an example of an operation (GetStockQuotes). This Web service, given a stock ticker value, returns information about that stock, including the company name, a current stock quote, daily high and low values, and related information.

As seen in Figure 417, our ddtek:wscall function block was created with two input ports (we could have created a ddtek:wscall function block with three input ports), a flow port, and an output port. (See Parts of a Function Block for general information about function blocks in XQuery Mapper.)

If you double-click the port, Stylus Studio displays a configurable information box, as shown in Figure 418. (The same is true for other input ports and the output port.)

Figure 418. ddtek:wscall Location Input Port

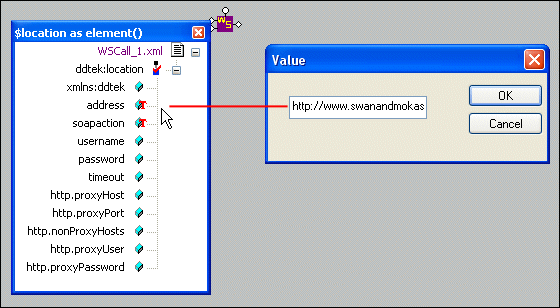

If we right-click the address node and choose Set Text Value, the Value dialog box displays the URL for the Swanand Mokashi Web service WSDL, as shown in Figure 419:

Figure 419. Value for ddtek:wscall location

Similarly, we would see GetStockQuotes if we looked into the soapaction node.

Payload Input Port

The payload input port for the ddtek:wscall function describes the data the Web service requires in order to execute the SOAP action. This port is on all ddtek:wscall function blocks. (It is the second input port for functions added to XQuery Mapper using the wscall/2 menu choice. It is the third input port if you used the wscall/3 menu choice.)

The "payload" for the Swanand Mokashi StockQuotes Web service, for example, is a ticker value - PRGS, GOOG, or EBAY, for example.

Figure 420. ddtek:wscall Payload Input Port

By default, no text value is defined for the payload port.

Header Input Port

The header port for the ddtek:wscall function appears on function blocks defined using the wscall/3 menu choice. You use the header port to provide authentication and authorization information, like a username and password, for example.

Output Port

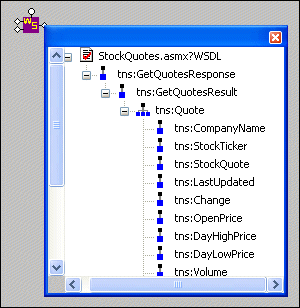

The output port for the ddtek:wscall function displays the output of the Web service represented by the ddtek:wscall function. In the case of the Swanand Mokashi StockQuote Web service, available output includes company name, stock quote, change, opening price, and so on, as shown in Figure 419.

Figure 421. ddtek:wscall Output Port

Displaying Port Information

To display port information, double-click the port.

Note that you can display information for only one input port at a time.

Moving Port Information

When you move a port information box, the ddtek:wscall function block moves with it, and vice versa.
