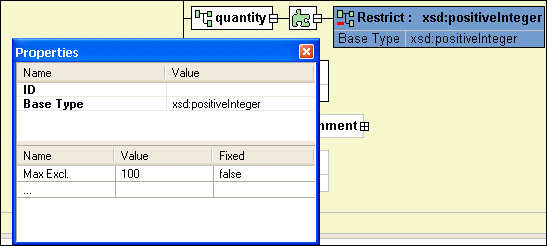

Home >Online Product Documentation >Table of Contents >Node Properties < Previous| Next > Node Properties The Properties window is available when you are using the Diagram or Tree tab of the XML Schema Editor. When the Properties window is open, it displays the properties of the node you click. If you have selected a restricted node from a redefined XML Schema, Stylus Studio displays a separate section in the lower half of the Properties window for you to specify the facets, as shown in Figure 292. Figure 292. Properties Window with Restricted Type Facets If the Properties window is not visible, select View > Properties from the Stylus Studio menu. Tip   The Properties window is a dockable window - you can drag it out of Stylus Studio and place it anywhere on your desktop, as shown in Figure 292. To change the value of a property, click the property field and enter the new value. If only certain values are allowed, Stylus Studio displays a drop-down list of the valid choices. Each type of node has its own set of properties. For a description of each property, see About XML Schema Properties. Working with Properties in the Diagram You can also display and edit properties within the nodes in the diagram. See Displaying Properties for more information on this feature. < Previous| Next >
