Figure 492, for example, shows a Stop node piped to the Output invalid output port of the Validate node - if the validation using the XML Schema specified in the Validate node fails, the Stop node aborts XML pipeline processing, and a user-defined error message is generated. Stop nodes do not have an output port - XML pipeline processing ends if it encounters a Stop node.

Figure 492. Stop Node in retrieveData.pipeline

Warning Nodes

Note

You cannot use a Warning node in an XML Pipeline for which you plan to generate C# code.

Warning nodes, like the one shown in Figure 493, do have an output port. When encountered in XML pipeline processing, a Warning node generates the user-defined error message you give to it and pipes the input it is given through to the next node in the XML pipeline.

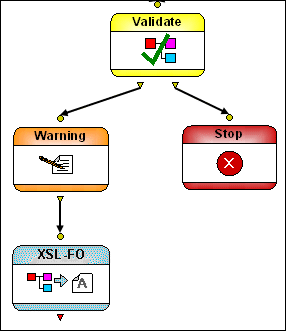

Figure 493. Example Warning Node Implementation
