Home >Online Product Documentation >Table of Contents >Updating the Schema of a Sample Document Updating the Schema of a Sample Document
This section provides instructions for updating the internal DTD for When an XML document has an external DTD, you can view the external DTD in the Schema tab of the XML Editor, but you cannot edit it. To be able to edit an external DTD, you must open it in the DTD editor. When an XML document has an internal DTD, you can view and edit it in both the Schema tab and the Text tab of the XML editor. You should have already performed the steps in Updating the Text of a Sample Document. Each of the following topics contains instructions for editing the sample XML document. You should perform the steps in each topic before you move on to the next topic. After the first topic, some steps depend on actions you performed in a previous topic. This section includes the following topics: For more information, see Defining a DTD - Getting Started. Creating a Sample SchemaTo create the schema of a sample XML document:
1. If it is not already open, open your-quotes.xml. See Opening a Sample XML Document if you need help with this step.
2. At the bottom of the XML editor window, click the Schema tab.

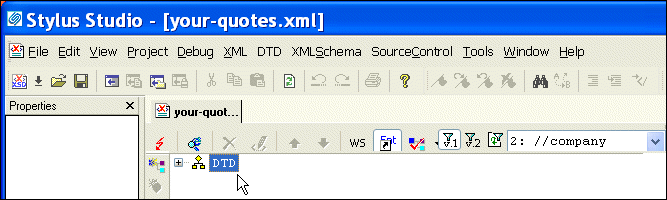

Stylus Studio displays the Schema tab, and opens the Properties window. The Schema tab displays a DTD tree, which is currently empty.
3. To create a schema for your-quotes.xml, select XML > Create Schema from XML Content from the Stylus Studio menu.

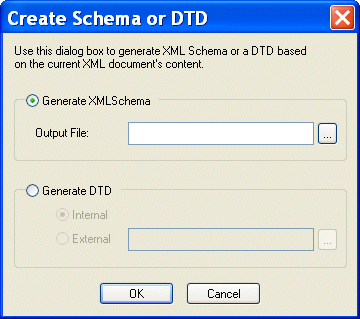

Stylus Studio displays the Create Schema or DTD dialog box. By default, Stylus Studio generates an internal DTD and inserts it in a
4. Click Yes to instruct Stylus Studio to create a DTD based on the XML document content.

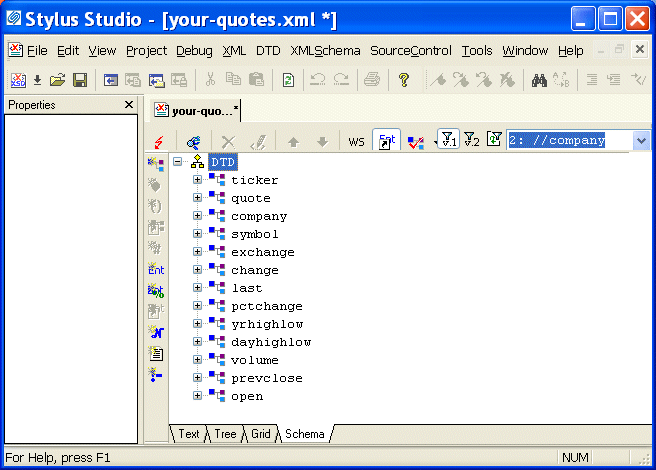

Stylus Studio displays a tree representation of the new, internal DTD. It also displays the Properties window. Defining a Sample Element
This topic is part of a sequence. If To define a new element in the Schema view of the sample schema:

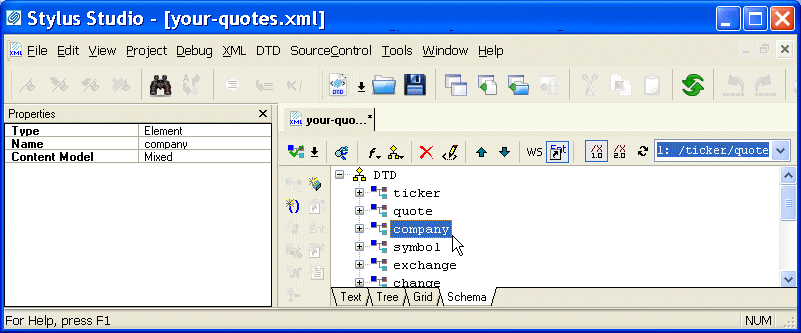

1. Click the company element in the Schema tab.
This selects the
The Content Model property indicates the allowable contents for a
2. Click the DTD node.
In the left tool bar, Stylus Studio activates only those buttons that are applicable to the DTD - you can add elements, entities, comments, and so on. But you cannot add an attribute definition, a reference to an element, or a
3. In the left tool bar, click New Element Definition
. Stylus Studio displays an entry field at the bottom of the tree.
4. Type location and press Enter. Stylus Studio displays the properties for the new location element in the Properties window.

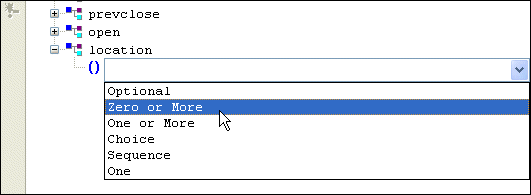

5. In the left tool bar, click New Modifier  . Stylus Studio displays a drop-down menu of options that specify the rules for the occurrence of the children of the new element.
6. Double-click Zero or More (or click once to select it and press Enter).
7. In the left tool bar, click Add #PCDATA
. Your definition of the location element specifies that it can contain only raw data.
Adding an Element Reference to a Sample Schema
This topic is part of a sequence. If To update the definition of the quote element to include an optional location element:
1. In the Schema tab, expand the quote element.
2. Click its Sequence modifier.
3. In the left tool bar, click New Modifier .
Stylus Studio displays an entry field for the new modifier at the end of the list of modifiers that already apply to the
4. In the drop-down list, double-click Optional.
5. In the left tool bar, click New Reference to Element
. Stylus Studio displays an entry field after the new Optional modifier.
6. Type location and press Enter.
7. To move the location element to be earlier in the sequence, click its Optional modifier.
8. In the XML editor top tool bar, click Move Up
repeatedly until the location element is where you want it to be.
Defining an Entity in a Sample Schema
This topic is part of a sequence. If To define an entity in the internal DTD for your-quotes.xml:
1. Click the DTD node.
2. In the left tool bar, click New Entity
.
At the end of the schema, Stylus Studio displays Ent and a entry field for the name of the new entity.
3. Type TCBCC for the name of the entity and press Enter.
In the Properties window, Stylus Studio displays the properties for the new entity.
4. In the Properties window, double-click the Value field.
5. Type The Country's Best Computer Company and press Enter.
Exploring Other Features in a Sample Schema
This topic is part of a sequence. If To toggle white space or validate your document:
1. Click Toggle Display of White Space  to display nodes that represent white space in the DTD. Click the button again to hide the white space nodes.
2. Click Validate Document
.

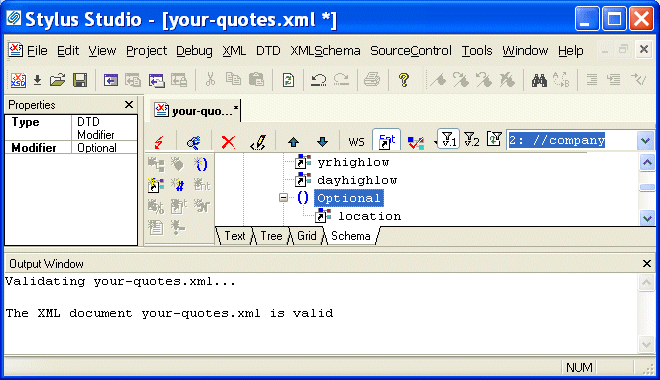

Stylus Studio displays a message in the Output window that indicates that the document is valid. |
