Where Converter URIs are Displayed in Stylus Studio

Converter URIs are displayed in the following places in Stylus Studio:

The URI field of the EDI to XML editor:

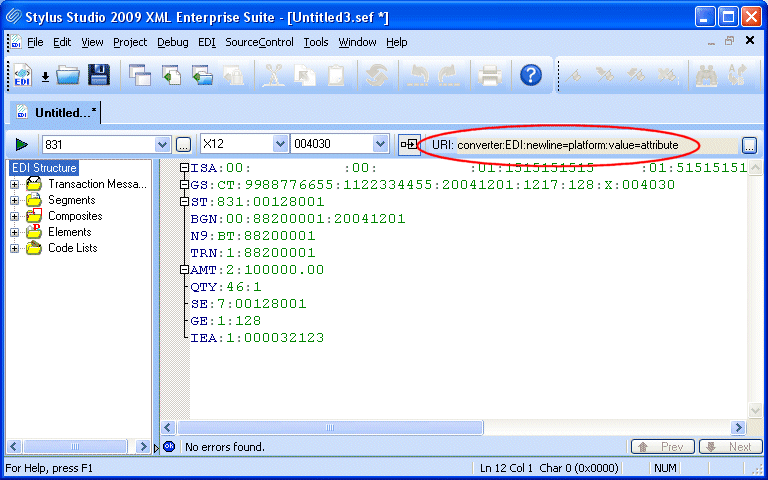

Figure 185. Converter:URI displayed in the EDI to XML Editor

You use the EDI to XML editor to create conversion files that you can save and reuse. See Chapter 4 "Converting EDI to XML" for more information.

The URI field of the Select XML Converter dialog box displays the converter:URI for the XML Converters or custom XML conversion definition you have selected.

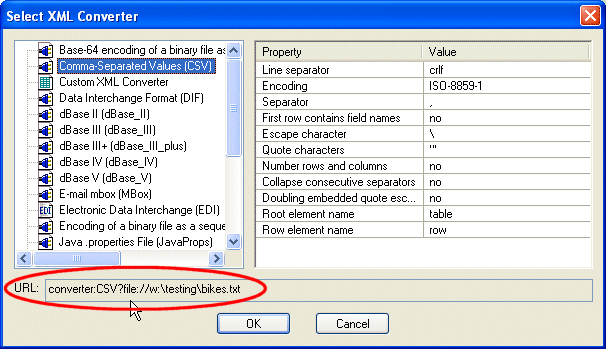

Figure 186. Converter:URI Displayed in the Select XML Converter Dialog Box

Note that XML Converters name and properties used in the converter:URI vary from the full names displayed in the Select XML Converter dialog box. In addition, note that only properties whose default value you change in the Value field are displayed in the URL field.

The Project window (select Show Full URL from the Project window shortcut menu) displays the converter:URI used to create an XML document:

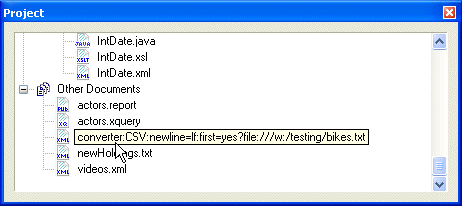

Figure 187. Converter:URI Displayed in Project WIndow

You can use any of these sources for the converter:URI strings you want to use in your XQuery and XSLT code. See Using Stylus Studio to Build a Converter URI for more information.


Tip		Converter URIs in the Select XML Converter dialog box are already escaped and can be used as-is. Converter URIs taken from the Project window must be escaped manually when you paste them into your XSLT or XQuery code.
