Using Lookup Lists

You can define lookup lists for individual fields. When Stylus Studio converts the input file, it replaces the string in the input file (the lookup) with the value you have defined for it in the Lookup List dialog box. Figure 180 shows an example of a lookup list that has been defined for a Status field:

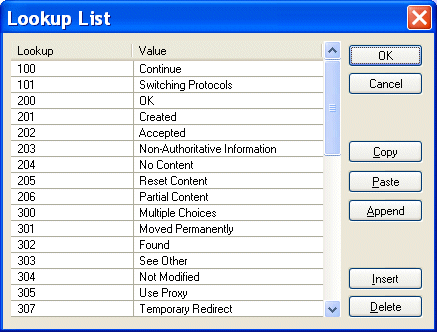

Figure 180. Sample Lookup List

For any Status fields in the input document with a value of, say, 100, Stylus Studio would convert that value to Continue in the XML document it outputs; values of 202 would be converted to Accepted; and so on.

Input file values that do not match a lookup are emitted in the XML document as-is, allowing exceptional values to be decoded. For example, you might have a temperature lookup list with these values for a <Temperature> field:

32 | Freeze

212 | Boil

All other temperatures would be emitted as-is.

Defining Lookup Lists

Lookups are case-sensitive, so, for example, a lookup of bmw would not match any of the Make fields in the following sample file:


Make,Model,Year,Mileage BMW,R1150RS,2004,14274 Kawasaki,GPz1100,1996,60234 Ducati,ST2,1997,24000 Moto Guzzi,LeMans,2001,12393 BMW,R1150R,2002,17439 Ducati,Monster,2000,15682 Aprilia,Futura,2001,17320

You can define lookup lists only for fields in rows for which a match pattern (even a blank match pattern, as is the default) exists. Finally, you can paste comma- and tab-delimited text directly into the lookup list. This allows you to easily reuse existing lookup tables without having to re-enter text.

To define a lookup list:

1. Select a row for which a match pattern exists.

2. Click the Lookup List entry field in the Properties window.

The Lookup List dialog box appears.

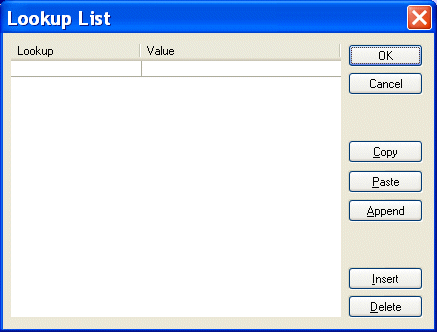

Figure 181. Lookup List Dialog Box

3. Enter lookup/value pairs in the corresponding entry fields.

4. When you are done, click OK.

Working with Lookup Lists

The following table summarizes the functions of the Lookup List dialog box, which allow you to work with new and existing lookup lists.

Table 23. Lookup List Dialog Box Buttons
Button	Function
OK	Commits the lookup list to the custom XML conversion.
Cancel	Closes the Lookup List dialog box without committing any changes.
Copy	Copies the lookup list.
Paste	Pastes comma- and tab-separated text into the lookup list. Replaces existing content, regardless of which row you have selected
Append	Adds comma- and tab-separated text to the end of the lookup list. Existing lookup list content is preserved.
Insert	Adds a new row to the lookup list.
Delete	Removes the selected row from the lookup list.


Note		Copy, Paste, and Append use the system clipboard and insert at the current cursor location. Any blank rows are discarded when you save the lookup list.
