Types of XML Converters
DataDirect XML Converters support numerous file formats, as shown in the following table.
File Category
|
File Type
|
Description
|
|---|
EDI
|
EANCOM, EDIFACT, Edig@s, HL7, IATA, and X12
|
Automatically detects and parses EANCOM, EDIFACT, Edig@s, HL7, IATA, and X12 EDI message types, with options for custom message types and message extensions to cover proprietary EDI-based formats.
|
Flat Files
|
Base-64
|
Converts any file, text or binary (such as an image), into a XML document with a single element containing the Base-64 encoded content of the input file.
|
|
Binary
|
Similar to the Base-64 XML Converter, except with hexadecimal output. Other options allow output in other bases, such as decimal or octal or even binary.
|
|
CSV
|
Converter for comma-separated values (CSV) files. Supports multiple encodings and options to tune the quote and escape characters. Supports delimiters besides commas.
|
|
dBase
|
Support for dBase II, III, III+, IV, and V formats.
|
|
DIF
|
Data Interchange Format (DIF) is a spreadsheet-based file format. There are also XML Converters for SDI and SYLK.
|
|
DotD
|
Support for Progress Software's OpenEdge text dump file format.
|
|
JavaProps
|
Support for Java .properties file format, which are used for program configuration, translation, and data storage.
|
|
JSON
|
Uses the algorithms on the JSON.org website to read from XML and write to JSON (JavaScript Object Notation), and vice-versa.
|
|
Line
|
Reads in text one line at a time, wrapping an element around each line and escaping any embedded & or > or < symbols.
|
|
MBox
|
Parse the standard mbox file format and even handles multi-part messages.
|
|
Pyx
|
Support for this line-oriented notation for expressing tree-oriented data.
|
|
RTF
|
Converts rich-text format (RTF) into XML, and vice versa.
|
|
SDI
|
Super Data Interchange (SDI) is another popular spreadsheet-based file format. There are also XML Converters for DIF and SYLK.
|
|
SYLK
|
SYLK (Symbolic Link) is another popular spreadsheet-based file format. There are also XML Converters for DIF and SDI.
|
|
TAB
|
Tab-separated values format commonly associated with MS Excel spreadsheets.
|
|
WinIni
|
Converter for Windows .ini configuration files.
|
|
WinWrite
|
Converter for Microsoft WinWrite files; renders XHTML.
|
Table 20. Types of Files Handled by XML Converters

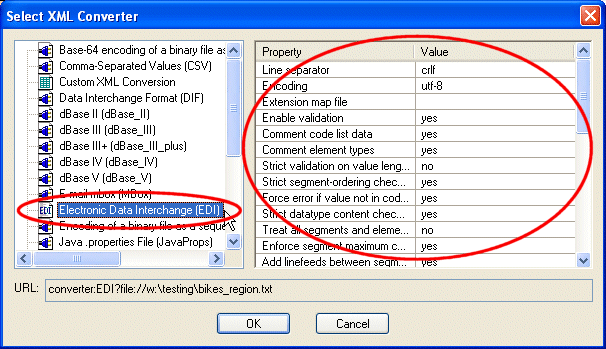

As mentioned previously, access to XML Converters is presented in graphic user interface, shown here:
|
Figure 143. Select XML Converter Dialog Box
To learn more about using XML Converters to convert files to and from XML, see Using XML Converters to Open a Non-XML File as XML.
