Mapping wscall Functions

In most typical XQuery mapping operations, you map source and target document nodes to function block ports, as shown in Figure 351.

Figure 351. Mapping Typical Function Blocks in XQuery Mapper

When use a wscall function, however, you map source and target document nodes to schema nodes in the port information blocks, as shown in Figure 351.

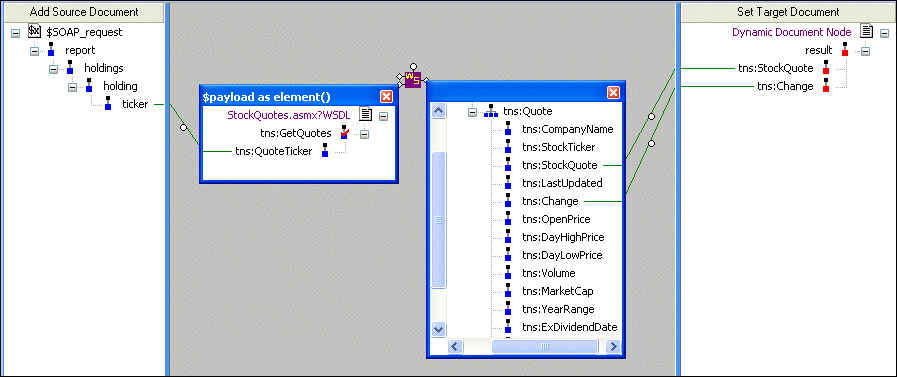

Figure 352. Mapping a wscall Function Block
