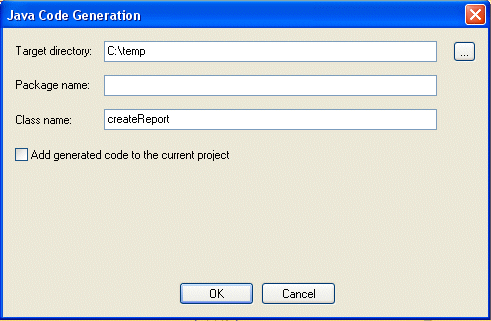

Java Code Generation Settings

l The target directory in which you want the Java code created. c:\temp\myJavaCode, for example. If the directory you name does not exist, Stylus Studio creates it when you run the Code Generation wizard.

The default is a \sources directory created in your Windows user data directory - C:\Documents and Settings\sula\My Documents\Stylus Studio\sources , for example.

l Optionally, a package name. If you specify a package name, this name is used for a subfolder created in the target directory you specify. If you specify myPackage as the package name, for example, the generated code is written to c:\temp\myJavaCode\myPackage. (Though optional, it is considered good practice to create a package name.)

l The class name. Stylus Studio also uses the class name for the .java file created by the Code Generation wizard. For example, if you provide the name myClass, Stylus Studio creates c:\temp\myJavaCode\myPackage\myClass.java.

The default class name is taken from the XSLT file name.

l Whether or not you want to add the generated code to the current Stylus Studio project. If you choose to add the generated code to the project, it creates a folder using the package name you specify and places the .java file in that folder. If you do not specify a package name, the .java file is added directly below the project root in the Project window.
