Example

In this example, we have imported the WSDL my_StockQuotes.wsdl into our local WSDL. This WSDL is a copy of the Swanand Mokashi StockQuotes.wsdl. When imported, Stylus Studio creates the following:


`<?xml version="1.0"?>` `<wsdl:definitions xmlns:xsd="http://www.w3.org/2001/XMLSchema"` `xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"` `xmlns:auto9="http://swanandmokashi.com">` `<wsdl:import namespace="http://swanandmokashi.com"` `location="file:///w:/testing/my_StockQuotes.wsdl"/>` `</wsdl:definitions>`

In addition to the default xmlns:xsd and xmlns:wsdl namespaces created with the Definitions elements, notice that the xmlns:auto9 namespace has been added.

Now, if we load the imported WSDL and then create a Binding element, we see that the Type property drop-down list contains several types with the auto9 namespace prefix:

Figure 455. Elements Defined in an Imported WSDL

In addition, the imported WSDL now appears in the definitions browser.

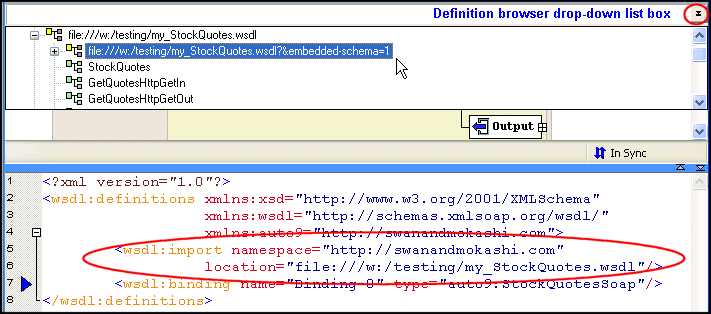

Figure 456. Definition Browser Shows Imported WSDL
